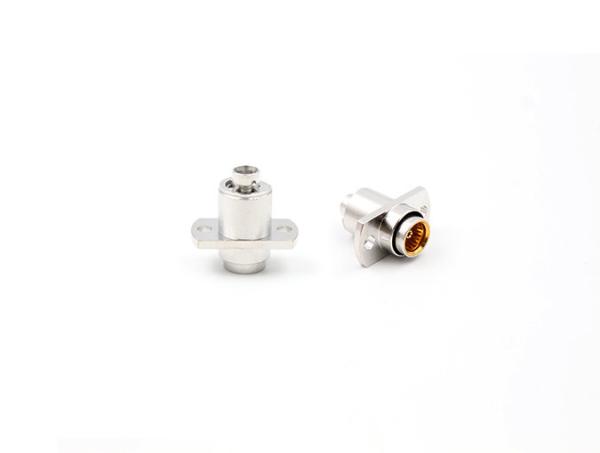

RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3

  • 1
  • 2
  • 3

Brand Name : Terui

Model Number : BMA-KFB3

Certification : RoHS

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 3-10 working days

Packaging Details : Standard export packaging

Contact Now

RF Connector BMA Female Flange Mount .141 Cable BMA-KFB3

Type BMA is snap-on coupling miniature RF Coaxial Connector , which are specially designed for blind mate applications in low power microwave comunication system , military and civil data microwave communication system where high reliablity and easy assembly will be required .



Product Details



RF Connector BMA Female Flange Mount .141 Cable

Teruilai P/N: BMA-KFB3

RoHS Certificate: Compliant

Electrical data Requirments
Frequency range DC-18GHZ
Dieletric withstanding voltage 750V
Characteristic impedance 50Ω
Insulation Resistance ≧5000MΩ
VSWR 1.20:1

Mechanical data Requirments
Durability (matings) ≧500

Environmental data Requirments
Temperature range -40℃ to 85℃

Material data Requirments
Connector parts Material Plating
Body Brass Nickel plated
Pin contacts Brass Gold
Gasket Silicon rubber
Insulators Teflon
