SMB female straight connector for RG405 Cable

Name: SMB female straight connector for RG405 Cable
Brand: Terui
Price: 1 USD

Buy cheap SMB female straight connector for RG405 Cable product

Brand Name : Terui

Model Number : SMB-75KB2

Certification : RoHS

Place of Origin : China

MOQ : 10

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 1000000pcs per month

Delivery Time : 3-10 working days

Packaging Details : Standard export packaging

Contact Now

SMB female straight connector for RG405 Cable

SMB is one kind of coaxial precision connectors up to 4GHZ Its advantage is samll size, high mechanical strength, high durability and optimum electrical properties.They can be widely used in the field of micro-wave communication ,spaceflight and navigation,instrument and etc.

Product Details

SMB female straight connector for RG405 Cable

Teruilai P/N: SMB-75KB2

RoHS Certificate : Compliant

Electrical data	Requirments
Frequency range	DC-2GHZ
Dieletric withstanding voltage	1000V
working voltage	≦335V
Characteristic impedance	75Ω
Insulation Resistance	≧1000MΩ
Contact Resistance
.Center conductor	≦6.0mΩ
.Outer conductor	≦1.0mΩ

Mechanical data	Requirments
Durability (matings)	≧500

Environmental data	Requirments
Temperature range	-45℃ to 85℃

Material data	Requirments
Connector parts	Material	Plating
Inner Contact	beryllium copper	Gold-plated
Outer Contact	Brass	Gold-plated
Insulators	Teflon
Contact Spring	Beryllium copper	Gold-plated

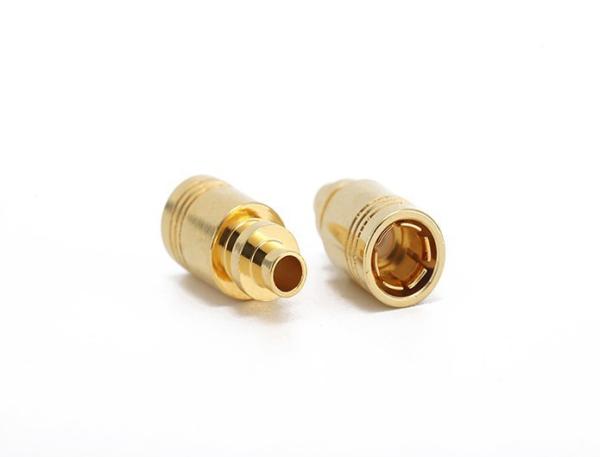

SMB female straight connector for RG405 Cable Images
